Serrated Spline Vinyl 15lb Roll(Bulk)

Keep your screen shop stocked with commercial-grade serrated vinyl spline. Engineered for high-volume screen production, commercial repair shops, and large-scale contractor jobs, this 15-pound bulk spool delivers professional holding power at an economical per-foot cost.

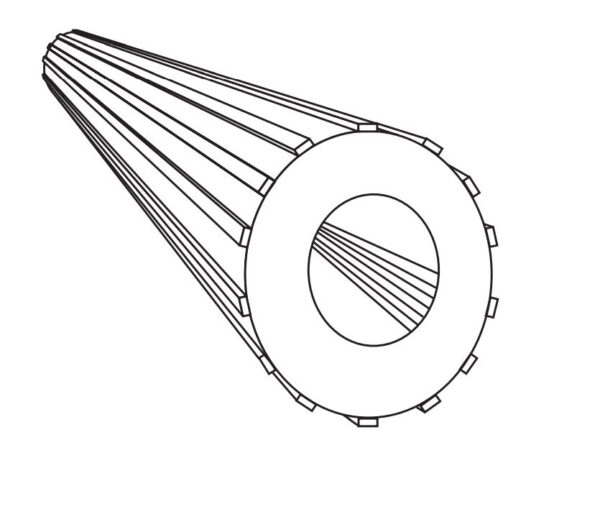

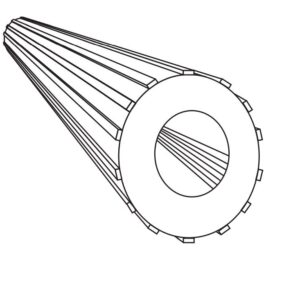

Featuring a precision-extruded serrated (ribbed) core, this spline compresses smoothly into aluminum and vinyl frame channels upon insertion and expands firmly against the mesh. The result is a drum-tight, long-lasting seal that locks fiberglass, aluminum, pet, and solar screen materials securely in place.

Key Features & Benefits

• Serrated Ribbed Core: Vertical ribbing compresses easily during rolling and expands inside the frame track to lock screen mesh firmly under tension.

• Commercial 15 lb Spool: High-capacity bulk packaging minimizes spool changes and reduces material waste on production lines and job sites.

• UV-Stabilized Weather Resistance: Formulated from high-grade vinyl engineered to resist drying out, cracking, shrinking, or deteriorating under direct sun and harsh outdoor weather.

• Smooth Roll-In Action: Flexible yet firm construction glides smoothly into frame grooves using standard dual-wheel or single-wheel spline tools without snapping or stretching out.

Product Specifications

Spline Selection & Sizing Guide

Selecting the proper spline diameter depends on both your frame channel width and the type of mesh being installed:

• Standard Bug Screens (Fiberglass & Aluminum): Choose a spline diameter 0.010″ larger than the empty frame channel width. The serrated vinyl compresses gently into the groove to maintain optimal tension.

• Thick / Heavy-Duty Meshes (Solar & Pet Screen): Because solar and pet-resistant meshes occupy significantly more space in the channel, choose a spline diameter up to 0.020″ smaller than the frame channel width to prevent tearing the mesh or warping the frame.

Frequently Asked Questions

How much linear footage is on a 15 lb spool?

Total footage depends on the diameter you select. Smaller diameters (such as 0.115″ or 0.125″) yield significantly more total linear feet per spool than thicker diameters (such as 0.200″ or 0.250″).

Is a 15 lb spool compatible with standard shop spool racks/dispensers?

Yes. These spools feature a standard center core designed to fit onto most commercial screen production tables and portable contractor spool dispensers.
